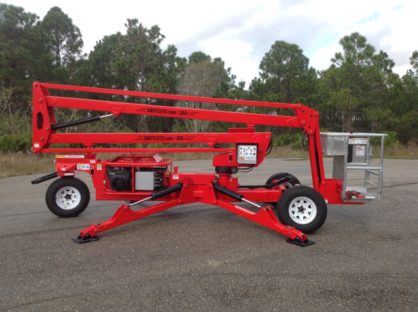

Swift 380

When higher reach is necessary with the convenience of a highway speed towable, light weight lift for use on turf the SWIFT380 is your answer. Strong, durable and turn-in-its-own length maneuverability for use in tree trimming, painting and roof cleaning, power washing and sign and light maintenance.

The multi-section boom with ~360 degree base rotation positions the operator’s feet at 38′ on the worst possible (10 degree) slope, up to 40′ on level ground or to 19.6′ side reach beyond the lift centerline. Quick Reach feature allows use of the upper boom only (without base rotation) up to approx 20′ without use of the stabilizers for quick access. Base rotation requirements require use of the SWIFT Set-up single button self-leveling stabilizers to level and raise the lift for operation.

Jump to Features  Jump to Photo Gallery  Jump to Tech Specs

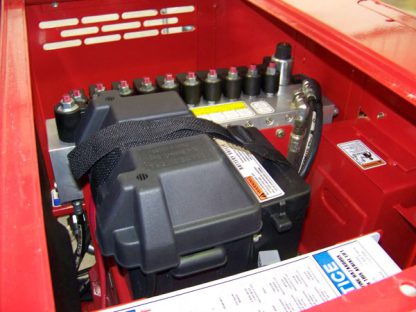

Swift Lift 380+ valves controlled from the platform with manual overrides

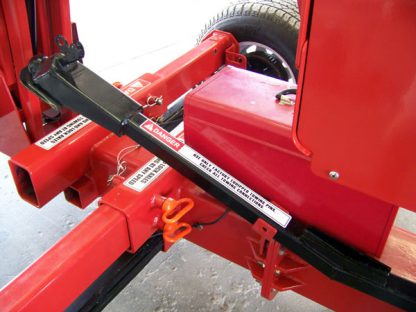

Swift 380+ Retractable Axles either powered or manually operated

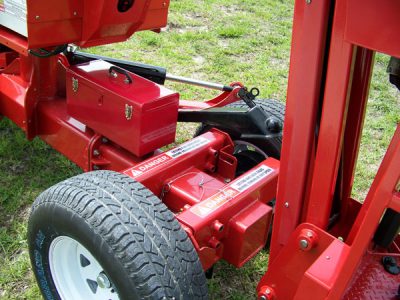

Swift Lift 380+ narrow access - minimum 4ft width
Swift Lift 380+ Kohler 18HP engine enclosure

Lifts feature a stiff steel tube frame spine supporting the drive end, enclosure, centrally located stabilizer mount, base rotation boom and platform end axle. The main frame acts as the hydraulic fluid reservoir simplifying hosing runs throughout the lift.

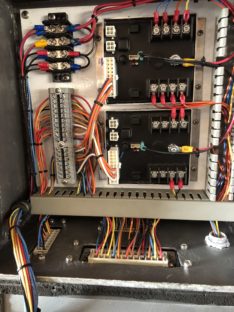

The enclosure includes separate insulated engine compartment and isolated hydraulic/electric compartment to reduce heat and provide easier access for serviceability. Platform controls operate all lift functions. Ground controls duplicate all boom and stabilizer functions and can be used for setup/service or operator override for an incapacitated operator. Ground controls do not include the drive/steer functions. All lift hydraulic function controls include manual overrides.

The EFI (electronic fuel injected) engine assures reliable starting from Start/ESTOP pushbuttons in the platform or key switch operation at the Main Control Panel. Engine speed is automatically controlled by platform joystick or ground control Enable function. EFI engine control reduces noise, reduces heat and reduces fuel consumption (approx 20%).

The multi-section boom uses non-greaseable, high strength nylon pin bushings. Cylinders include counterbalance holding valves. Joystick positioning controls can activate multiple cylinders simultaneously by operator choice to speed boom operation. Quick reach feature allows Upper Boom stick operation to approx 20’ without deploying the stabilizers. When needed SWIFT set-up, self-leveling stabilizers deploy individually, each sense ground contact and raise and level the lift frame at operator direction. With raised boom the system alerts the operator if a stabilizer has lost firm contact on soft ground, stops boom operation and allows resetting that stabilizer while maintaining boom position without lowering.

The operator’s aluminum platform is lightweight, includes a integral tool tray and optional 120VAC GFCI outlet and/or pressure washer connections connected to inputs at the main frame. Operator’s platform controls include dual axis joystick for either drive or boom functions based on mode selection, stabilizer extend/retract pushbuttons, engine start/ESTOP pushbuttons and Upper/Lower Boom override pushbuttons to alter joystick boom reactions.

What’s Included

  • Meets ANSI A92.5-2006 Safety Standards
  • Florida DOT – New equipment exceeds current vehicular requirements
  • 1/3/5 Warranty – 1 year all new parts, 3 years new engine, 5 years structure and rust through warranty on powder coat paint
  • Factory Direct Service and 24 hr Support – Direct phone and email contact
  • Benefits Multiple Industries: Ideal for tree care or hedge trimming in any location, parking lot and street light maintenance, Holiday decorating, gutter and structure cleaning

Swift 380 Features

  • Boom Coverage

    38′ platform base height on up to 10 degree slopes, 40′ platform base height on level ground. Add operator height, arm reach and extension tools for max height coverage. Side reach 19′

  • Towable & Self-Propelled

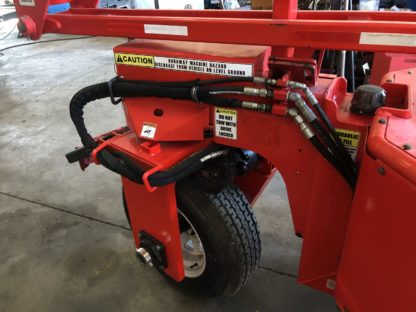

    Drop and stow the ZERO tongue weight tow bar. Engage the durable, tandem chain drive at the simple multi-pin plate disconnect. Drive, Stabilizer and Boom operations from the platform.

    Self-propelled with or without stabilizers without boom rotation.

    Quick Reach allows drive function while raising Upper Boom use to 21’ without stabilizers

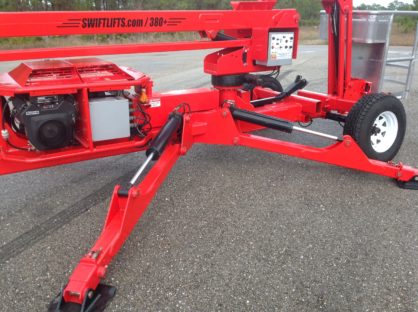

  • Swift Setup

    Single button control of stabilizers feature ground sensing and self-leveling on slopes up to 10 degrees for level frame boom use. Provides resetting individual stabilizers reacting to soft ground while boom is raised.

  • Retractable Axles

    Allows reducing the machine width to 4′ while maintain drive functions for narrow access (manual or hydraulic powered options)

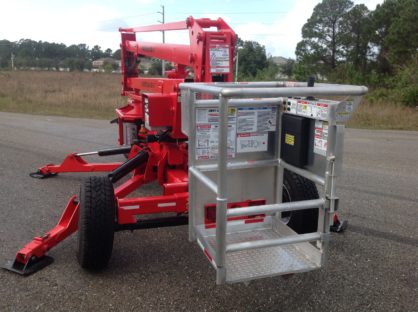

  • Platform Details

    All aluminum construction reduces weight. Isolated handrail protects operator’s hands. Tool tray for tool convenience. Single Joystick control. Pushbutton stabilizer control and EFI engine start/ESTOP.

    Integral stop/turn/tail lamps for towing.

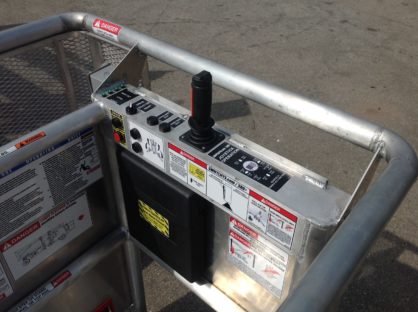

  • Platform Controls

    Joystick, Mode Selection (drive/boom), single button stabilizer extend/retract, boom selection defeat (either boom operation exclusively), engine start/Estop, indictor lamps.

  • Joystick Control

    Mode selection for single joystick operation allows either drive functions of FWD/REV direction, speed, acceleration/deceleration, steer and drive speed range or boom functions for upper and lower boom arms, base rotation and jib operation. Boom stick speeds operation, raise/lower and EFI engine throttle activation on ENABLE.

  • Aluminum Enclosure Details

    Full volume 11 gallon fuel tank with flameproof, vented safety cap, removable covers for service access to insulated engine compartment and hydraulic/electric compartment.

  • Smart Technology

    Ground sensing, self-leveling SWIFT Set-Up stabilizers, rotating boom use only with set stabilizers, resettable stabilizers with raised boom on soft ground, Quick Reach upper boom use to 20’ w/o stabilizers, counterbalance holding valves for stabilizers and boom cylinders. Battery powered APU for unpowered boom movement.

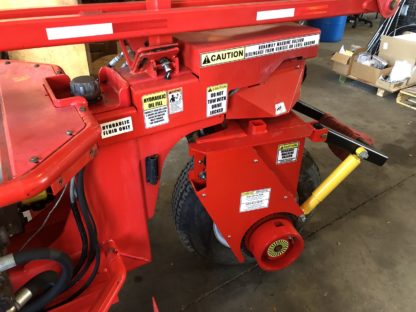

  • Drive Tow Disconnect System

    Simple tandem chain hydraulic drive system with hydraulic brake. Durable, dual pin drive disconnect disengages the drive axle for highway speed towing. Removable side plate for tire changing when necessary.

null

Photo Gallery

Swift Lift 380+ valves controlled from the platform with manual overrides
Swift 380+ Retractable Axles either powered or manually operated
Swift Lift 380+ narrow access - minimum 4ft width
Swift Lift 380+ Kohler 18HP engine enclosure

Feature Spotlight: Swift Setup

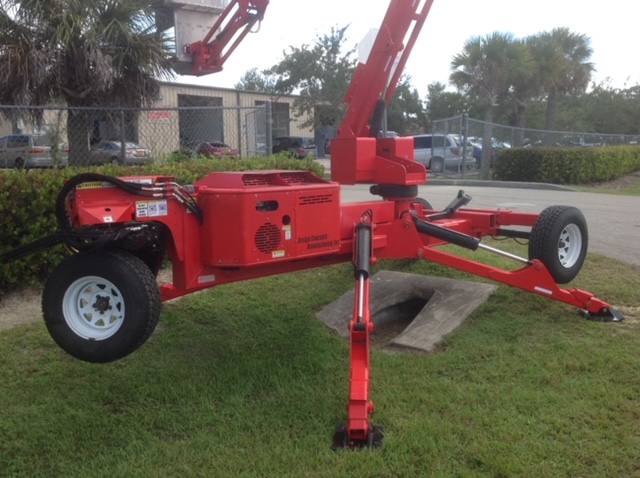

SWIFT Setup single pushbutton control deploys the self-levelling stabilizers. Each stabilizer stops at ground contact and waits until all stabilizers are firmly anchored. Stabilizers act collectively to raise and level the lift to an elevation preferred by the operator or until uneven ground conditions would prevent a level frame to allow the boom to be raised. The stabilizers manage slopes up to 10 degrees for level frame boom use. With the boom raised in operation the system alerts the operator if a stabilizer has lost firm contact on soft ground, stops boom operation for safety and awaits the operator to reanchor the ‘unset’ stabilizer using the single pushbutton while maintaining boom position without lowering.

Technical Specifications
Dimensions (L x W x H)20 x 7 x 8 ft (6.1 x 2.13 x 2.44 M), 20 x 4 x 8 ft (6.1 x 1.22 x 2.44 M) retractable axles
Ground Clearance10 inches (254 mm)
Operating Weight5,200 lbs (2,364 kg)
EngineKohler 19HP EFI gasoline engine w/electronic throttle speed control, integral engine diagnostics, tach-hour meter, remote oil drain, pushbutton start and ESTOP controls
Electric SystemVoltage Regulated charging, 12VDC, Sealed U1-3 Battery (375 CCA @ 0 degF/425 CCA @ 32degF)
Drive Speed (max)Joystick proportional 0-3.5 MPH, selectable speed ranges (boom down-jib operational)
Platform Capacity300 lbs (136 kg), single operator, all aluminum self-leveling platform, integral external tool tray
Transit Gradeability12 degrees (21%) – Engine Operation limited
Tires / RimsThree (3), 235/75R15 on 15x8, offset backspace, 5 lug x 4.5 BCD, DOT approved steel rims
Off-Level OperationSWIFT Set-up +/- 4 degrees, Tilt Level Sensor and audible alarm, Stabilizer Operation required for Boom Rotation or higher reach than SWIFT Set-up
Fuel Capacity11 gallon steel reservoir, flameproof safety fuel cap
Idler Axle3,500# GAWR, torsion spring axle w/electric brakes
Stabilizer SystemSingle control, ground sensing, self-leveling stabilizers (4), 10 degree max slope, < 2 deg leveling accuracy
Boom System4 function boom (Lower Boom, Upper Boom, Jib with 350 degree base rotation, mechanical parallel leveling of platform, counterbalance holding valves all cylinders, joystick operated
Boom Coverage38′ platform base height – 44′ working height (nominal), 19′ boom side reach and ~360 degree boom rotation
System Back-UpBattery powered APU for boom, stabilizer (and drive) functions
Hydraulic Capacity40 gallon frame reservoir, sight glass, pressurized breather/fill cap
Towing Tongue WeightZERO
Tow PackageDetachable tow bar, tow pins and chains, integral tow lights, vehicle connecting cord and breakaway battery backup system with cable operated breakaway switch, electric tow brakes standard
Safety PackageSafety/ Operating Guide, Safety/ Operating/ Maintenance/ Parts/ Troubleshooting instructions (digital), Integral Stop/ Turn/ Tail/ Side marker lamps in platform with tow cable for tow vehicle connection, Operating/ Safety/ Warning/ Maintenance decals affixed to lift, boom and stabilizer counterbalance position holding valves, APU battery powered system backup, ground controls of all boom functions.
