Swift 206

The evolution of the SWIFT product increases its usability for a wider variety of trimming tasks. The SWIFT206 IS the quickest lift to the work and the most maneuverable. The pivoting platform now requires fewer lift movements speeding up the trimming of a tree or hedge. New SWIFT product features design improvements and product enhancements for serviceability, structural strength, reduced weight, lower operating cost, expanded operating capabilities and increased safety.

The SWIFT206 is available with either standard or pivoting platform arrangements. Each exceeds ANSI Safety Requirements and DOT Regulations.

Jump to Features  Jump to Photo Gallery  Jump to Tech Specs

Lifts include structurally enhanced frame and boom using replaceable, self-aligning bushings for boom and platform pins to strengthen support for a ‘platform pivoted’ operator located at the edge of the lift profile.

An aluminum enclosure includes separate insulated engine compartment and isolated hydraulic/electric compartment to isolate heat and provide easier access for serviceability. The aluminum fuel tank has twice the usable fuel capacity of prior lifts for all day operation. A larger capacity, baffled aluminum hydraulic reservoir with cleanout and suction strainer controls oil quality.

A more efficient hydraulic system dramatically reduces hydraulic system temperature. The aluminum platform reduces weight and features integrated tow lights and tool tray (standard platform) or tool hangers (pivoting platform).

Transit speed and gradeability are increased, positioning speed is automatically reduced with a raised boom and the safety warning system is automatically activated.

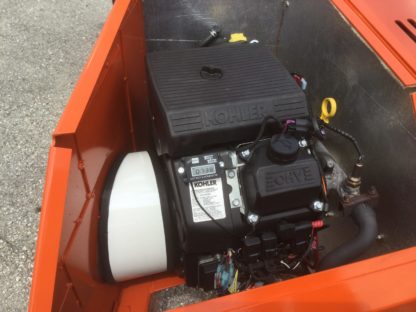

The EFI (electronic fuel injected) engine speed is automatically controlled by the joystick to reduce noise, reduce heat, reduce fuel consumption (approx 20%) and increase starting reliability from the platform. A more durable drive system is manufactured with and supported by parts made in the USA reducing foreign made part inconsistencies.

What’s Included

  • Meets ANSI A92.5-2006 Safety Standards
  • Florida DOT – New equipment exceeds current vehicular requirements
  • 1/3/5 Warranty – 1 year all new parts, 3 years new engine, 5 years structure and rust through warranty on powder coat paint
  • Factory Direct Service and 24 hr Support – Direct phone and email contact
  • Benefits Multiple Industries: Ideal for tree care or hedge trimming in any location, parking lot and street light maintenance, Holiday decorating, gutter and structure cleaning

Swift 206 Features

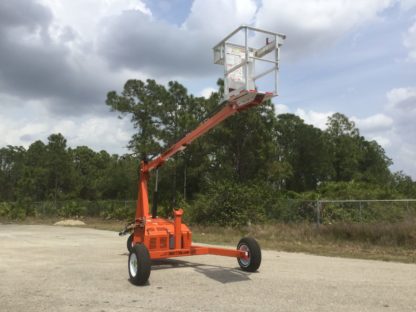

  • Boom Coverage

    20’6″ platform base height – 26’6″ working height (nominal)

  • Smart Boom Technology

    Automatic speed reduction and stability safety siren activation as boom rises. Replaceable, self-aligning bushings at all pins.

  • Towable & Self-Propelled

    Drop the ZERO tongue weight tow bar. Engage the durable, tandem chain drive at the simple multi-pin plate disconnect. All operations from the platform without jacks to the full operating height.

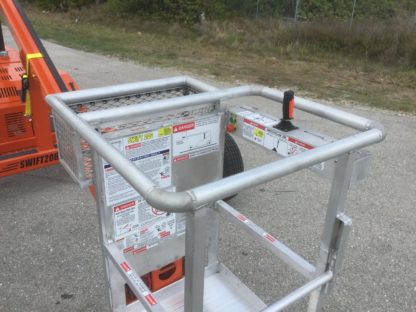

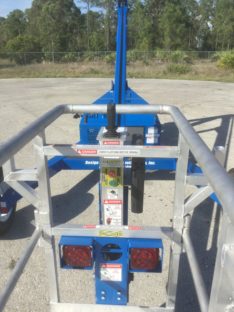

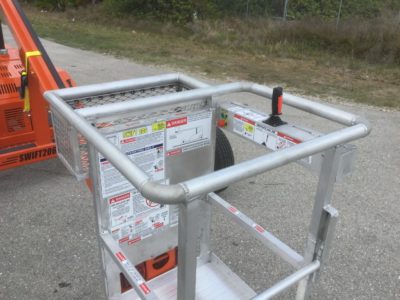

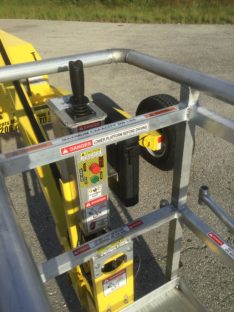

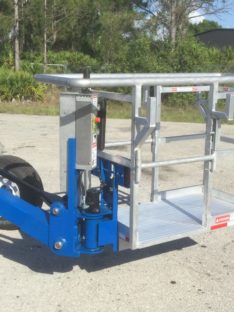

  • Platform Details

    All aluminum construction reduces weight. Isolated handrail protects operators hands. Tool tray for tool convenience. Single Joystick control. Pushbutton EFI engine start/stop/ESTOP

    Integral stop/turn/tail lamps for towing.

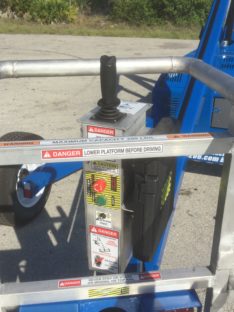

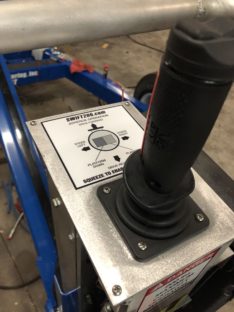

  • Joystick Control

    Single stick operation – drive speed, acceleration/deceleration, steer, raise/lower and EFI engine throttle activation on ENABLE

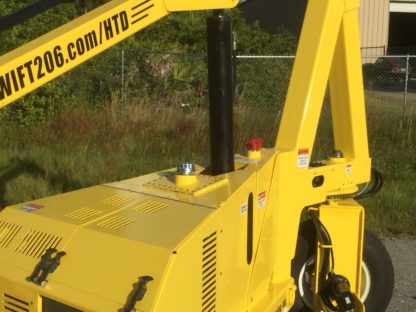

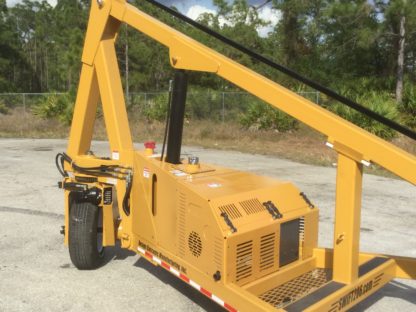

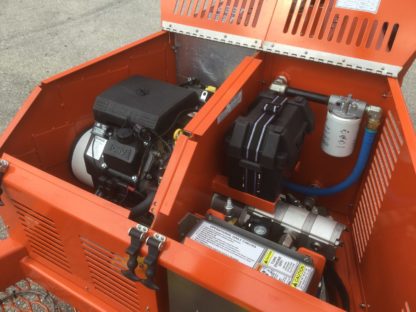

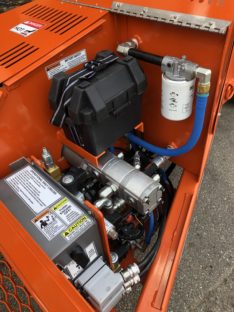

  • Aluminum Enclosure Details

    Full volume 13 gallon fuel tank with safety, vented fuel cap. 25 gallon baffled, hydraulic reservoir with spin-on hydraulic filter, cleanout cover and suction strainer for oil quality control, insulated engine compartment to isolate heat, redesigned hydraulics to improve performance and operating efficiency, redesigned electrics to maintain operating effectiveness.

  • Raise Cylinder

    Powered UP and powered DOWN to improve boom operating speed. Simple platform raise and lowering control at Ground Station. Boom DOWN does not require engine operation.

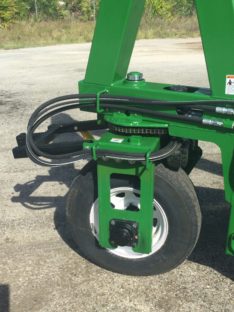

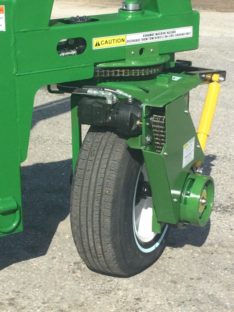

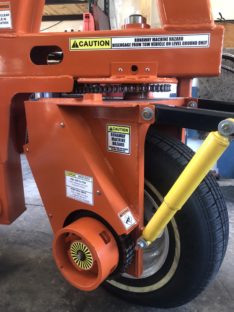

  • Drive Tow Disconnect System

    Simple tandem chain hydraulic drive system with hydraulic brake. Durable, dual pin drive disconnect disengages the drive axle for highway speed towing. Removable side plate for tire changing when necessary.

null

Photo Gallery

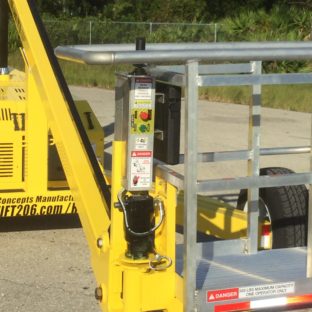

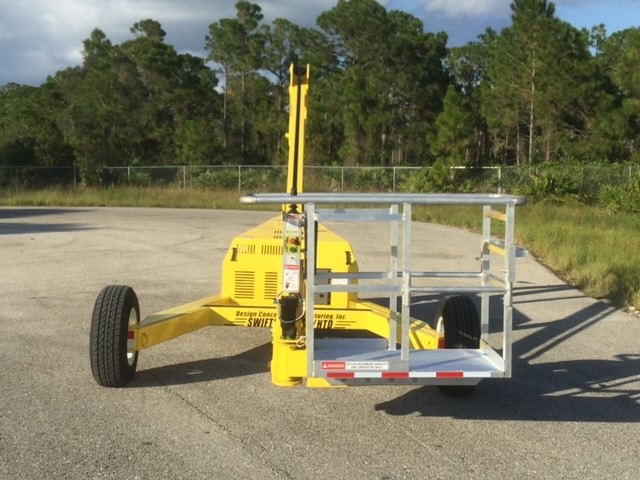

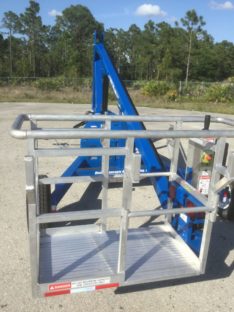

Feature Spotlight: Pivoting Platform

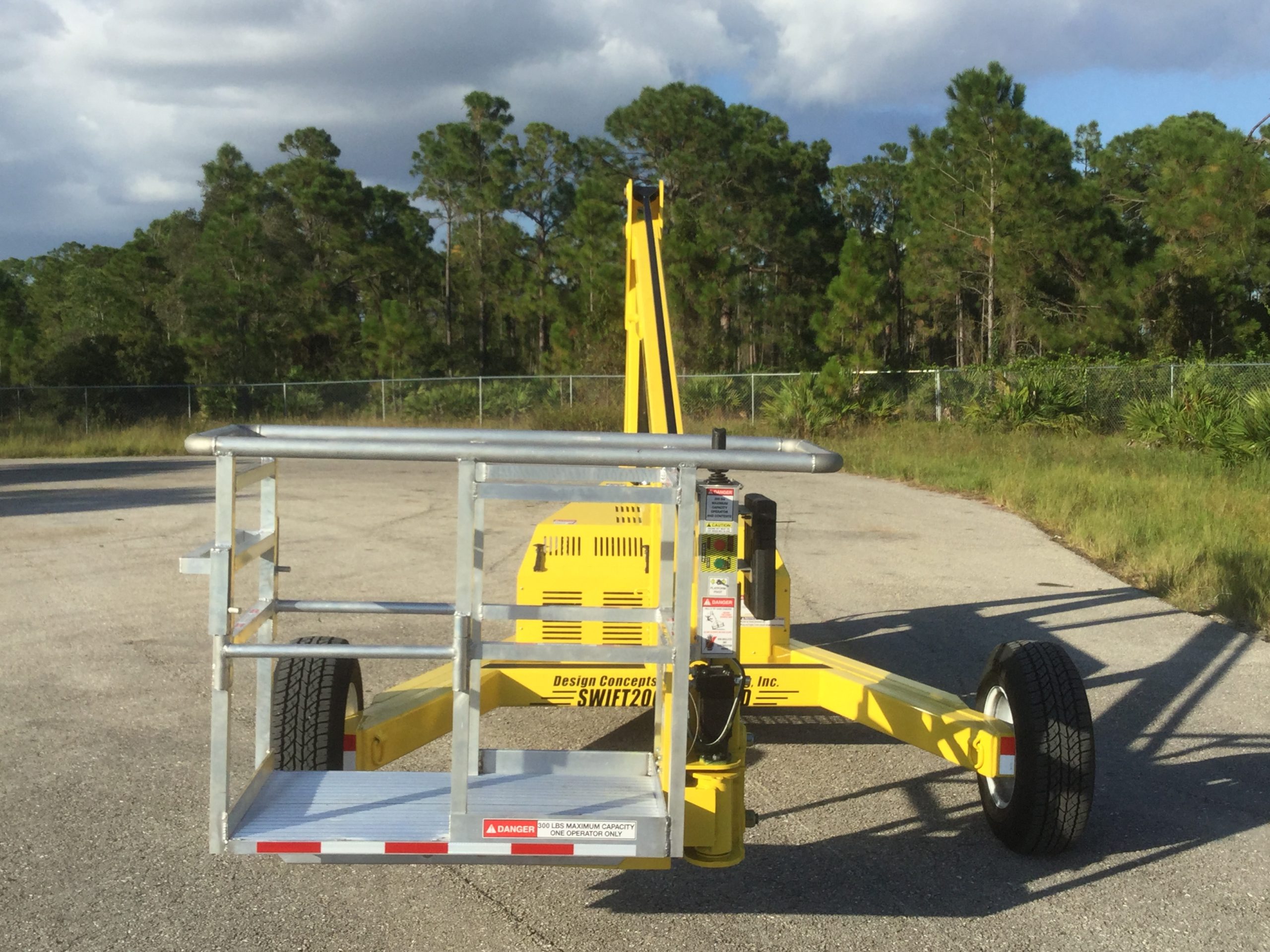

The pivoting platform requires fewer lift movements for tree trimming allowing more tree coverage from any platform position. Drive continuously without repositioning the lift. Face trim hedges up to 30′ and top hedges to 26’6″ and 6′ width with standard tools. Extension tools will complete facing taller hedges and topping greater widths. Tool hangers are configured to hold extensions tools and removable platform extensions can allow longer extension tool use if needed. The ‘no jack or stabilizer’ operating capabilities of the standard platform SWIFT206 are retained with a pivoting platform version placing the operator up to the edge of the lift profile in either driving direction. Platform egress is possible from either side depending on pivot direction. Lift joystick and engine controls are identical for standard and pivoting platforms reinforcing operator effectiveness for either version. The platform pivot can be changed at any time, in any boom position with a pivot control switch. The platform pivots around the joystick controls maintaining constant joystick direction operability regardless of platform position.

Technical Specifications
Dimensions (L x W x H): Standard Platform19.25 x 9 x 9 ft (5.87 x 2.75 x 2.75M)
Dimensions (L x W x H): Pivoting Platform20.9 x 9 x 9 (6.37 x 2.75 x 2.75M)
Ground Clearance11 in (280 mm)
Operating Weight: Standard Platform2,500 lbs (1,194 kg)
Operating Weight: Pivoting Platform2,900 lbs (1,320 kg)
EngineKohler 19HP EFI gasoline engine w/electronic throttle speed control, integral engine diagnostics, tach-hour meter, remote oil drain, push-button start and ESTOP controls
Electric System12VDC, Sealed, 375 CCA (@ 0 degF) Battery
Drive Speed (max)Joystick proportional 0-3.5 MPH, speed automatically reduced with rising boom (operator settable)
Platform Capacity300 lbs (136 kg), single operator, All aluminum self leveling platform
Transit Gradeability12 degrees (21%) – Engine Operation limited
Tires / Rims: Standard PlatformThree (3), LT235/75R15 (6 ply) on 15x8, offset backspace, 5 lug x 4.5 BCD, DOT approved steel rims
Tires / Rims: Pivoting PlatformThree (3), LT235/75R16 (6 ply) on 15x8, offset backspace, 5 lug x 4.5 BCD, DOT approved steel rims
Off-Level Operation+/- 4 degrees, Tilt Level Sensor and audible alarm
Fuel Capacity13 gallon aluminum reservoir, level indicators, flameproof safety fuel cap
Hydraulic Capacity28 gallon baffled, aluminum reservoir (usable volume), cleanout panel, pressurized breather/fill/level cap, suction strainer, drain plug
Towing Tongue WeightZERO
Tow PackageDetachable tow bar, tow pins and chains, integral tow lights and vehicle connecting cord
Safety PackageSafety/Operating Guide, Safety/Operating/Maintenance/Parts/Troubleshooting instructions (digital), Integral Stop/Turn/Tail/Side marker lamps in platform, Operating/Safety/Warning/Maintenance decals affixed to lift, raise cylinder holding valve with override for ground operator, automatic speed reduction with rising platform (operator preference)
